WIP - 3-way Modular Joint

Product Modular joinery
Year TBC
Material TBD

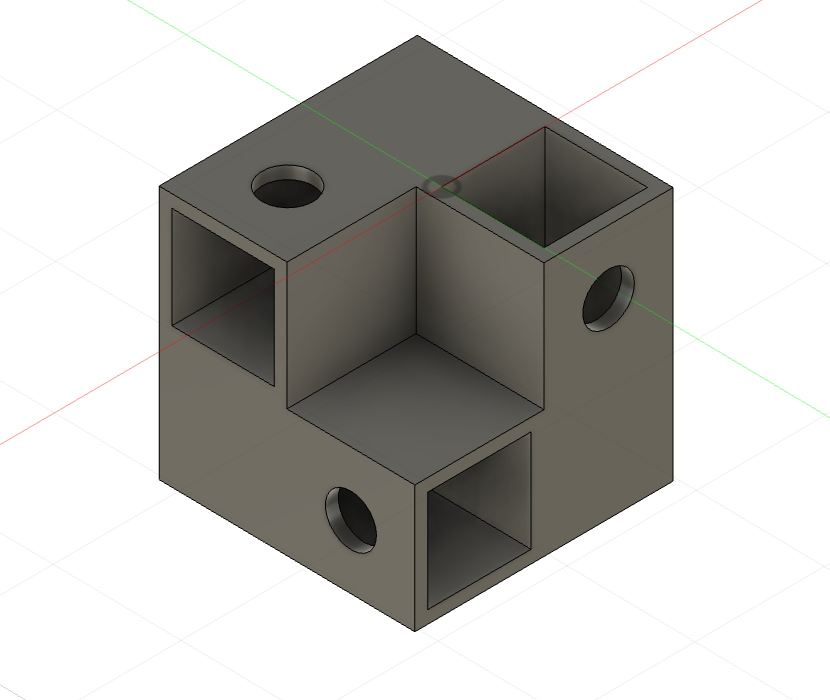

Currently in progress is this modular joinery system. By clamping beams of wood or metal in the bars, the system will be able to create simple cubic structures.

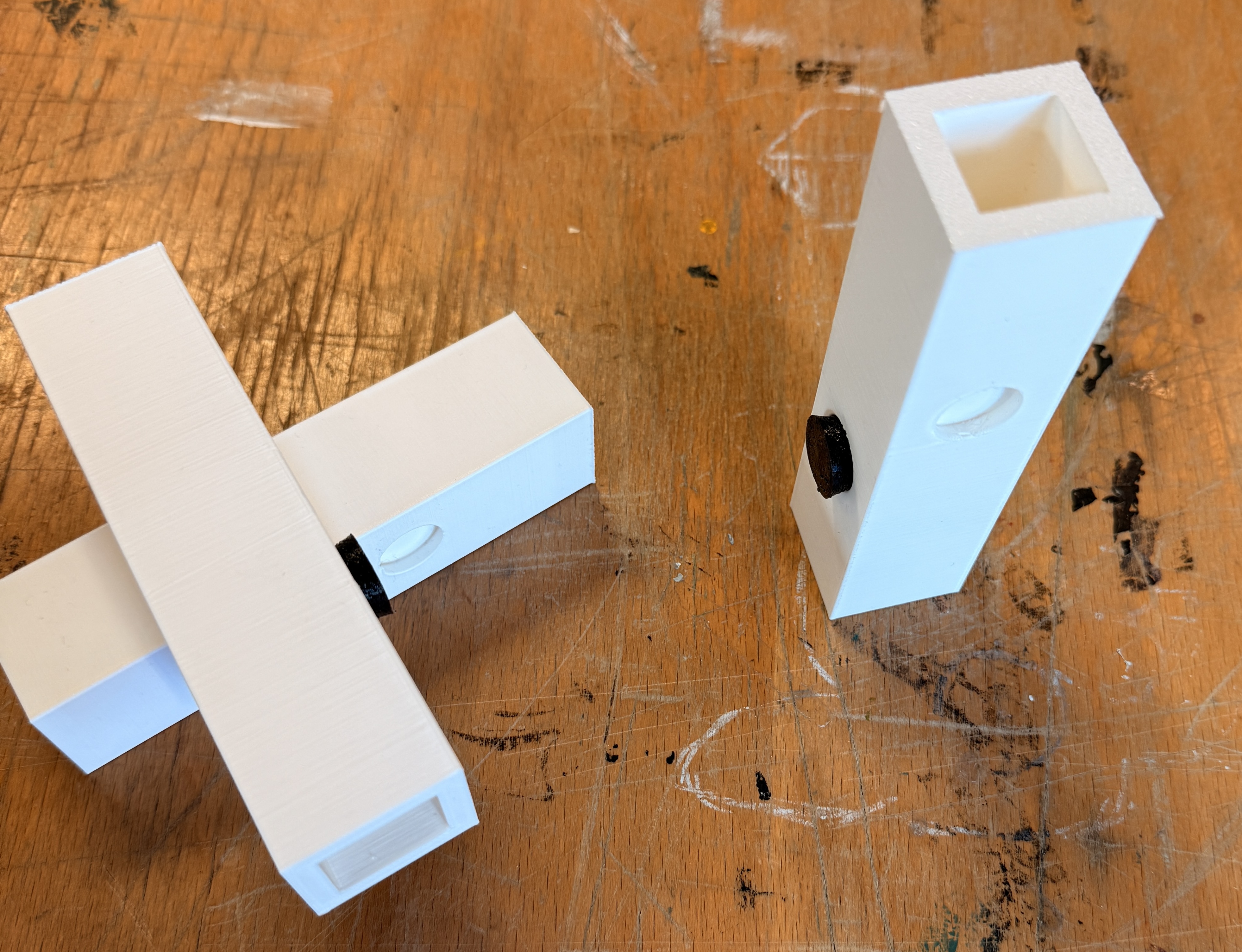

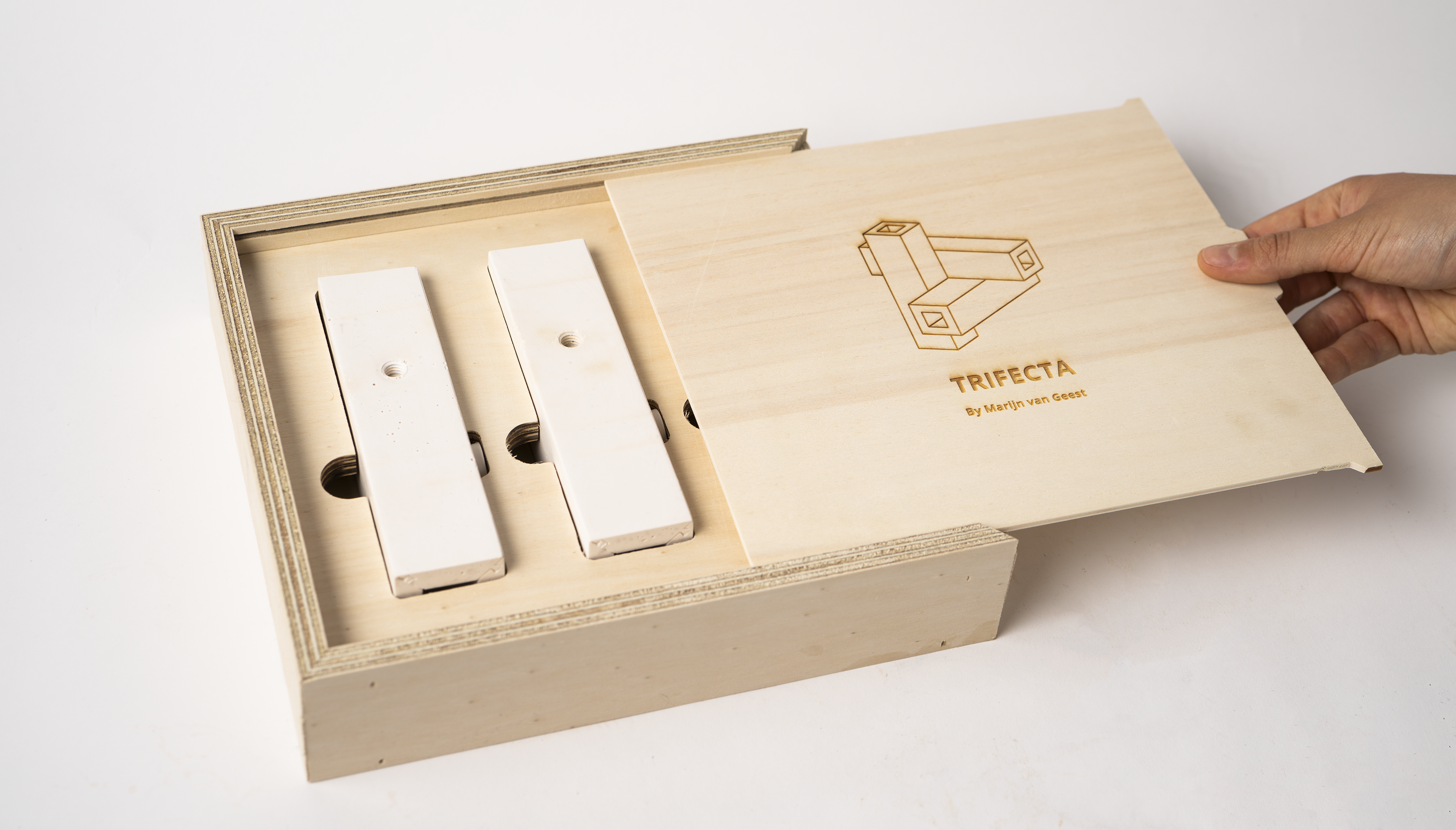

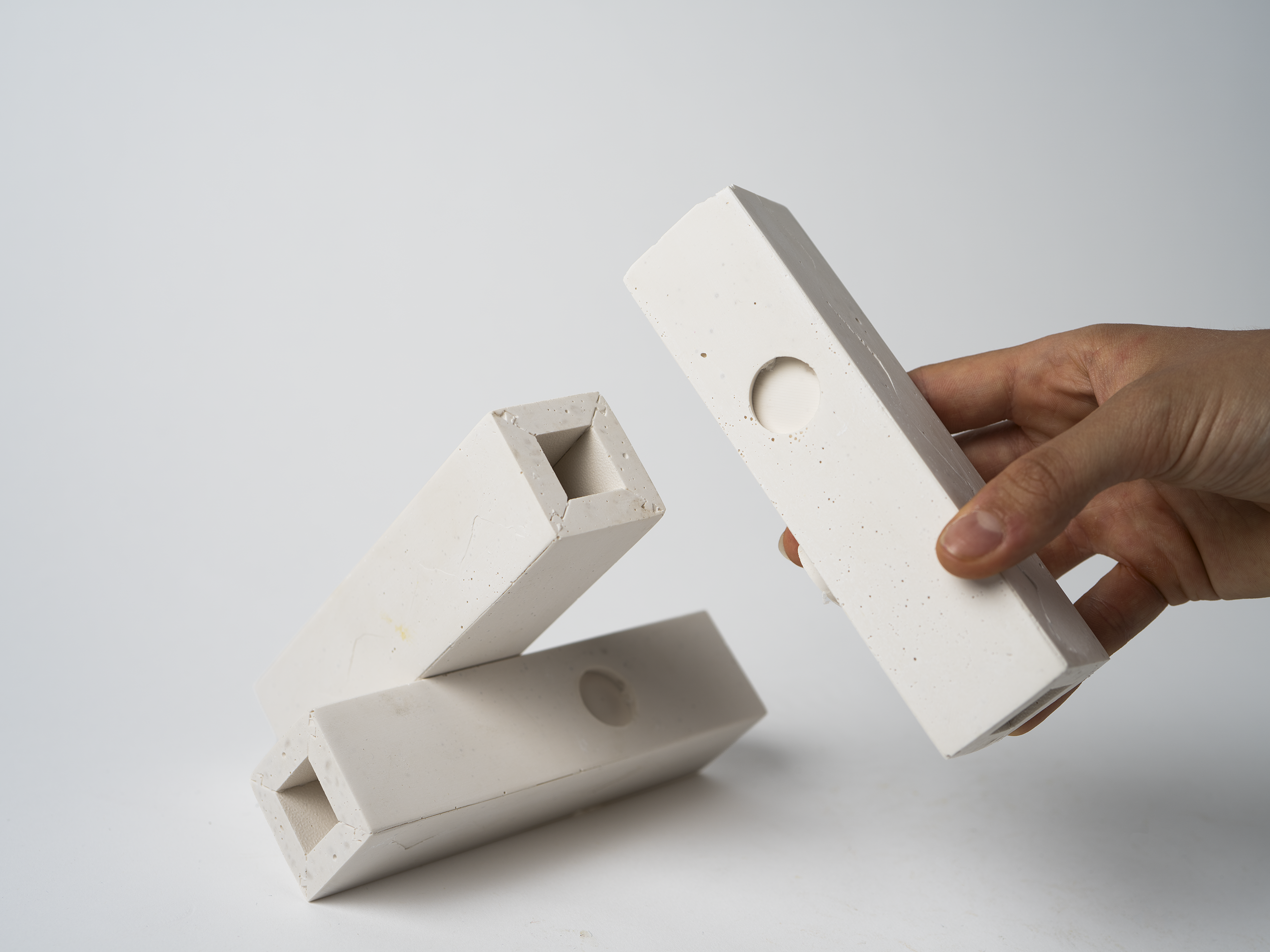

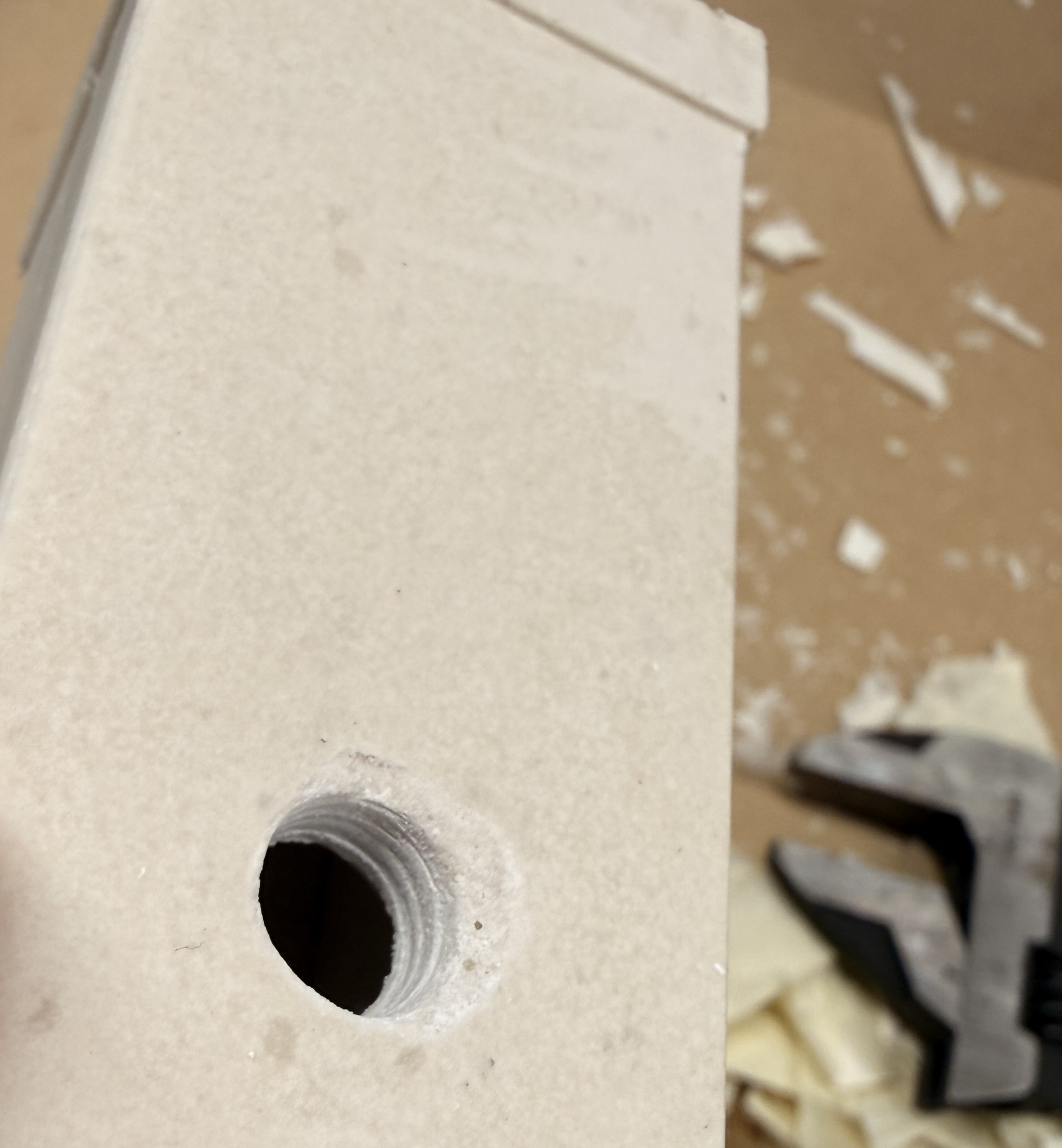

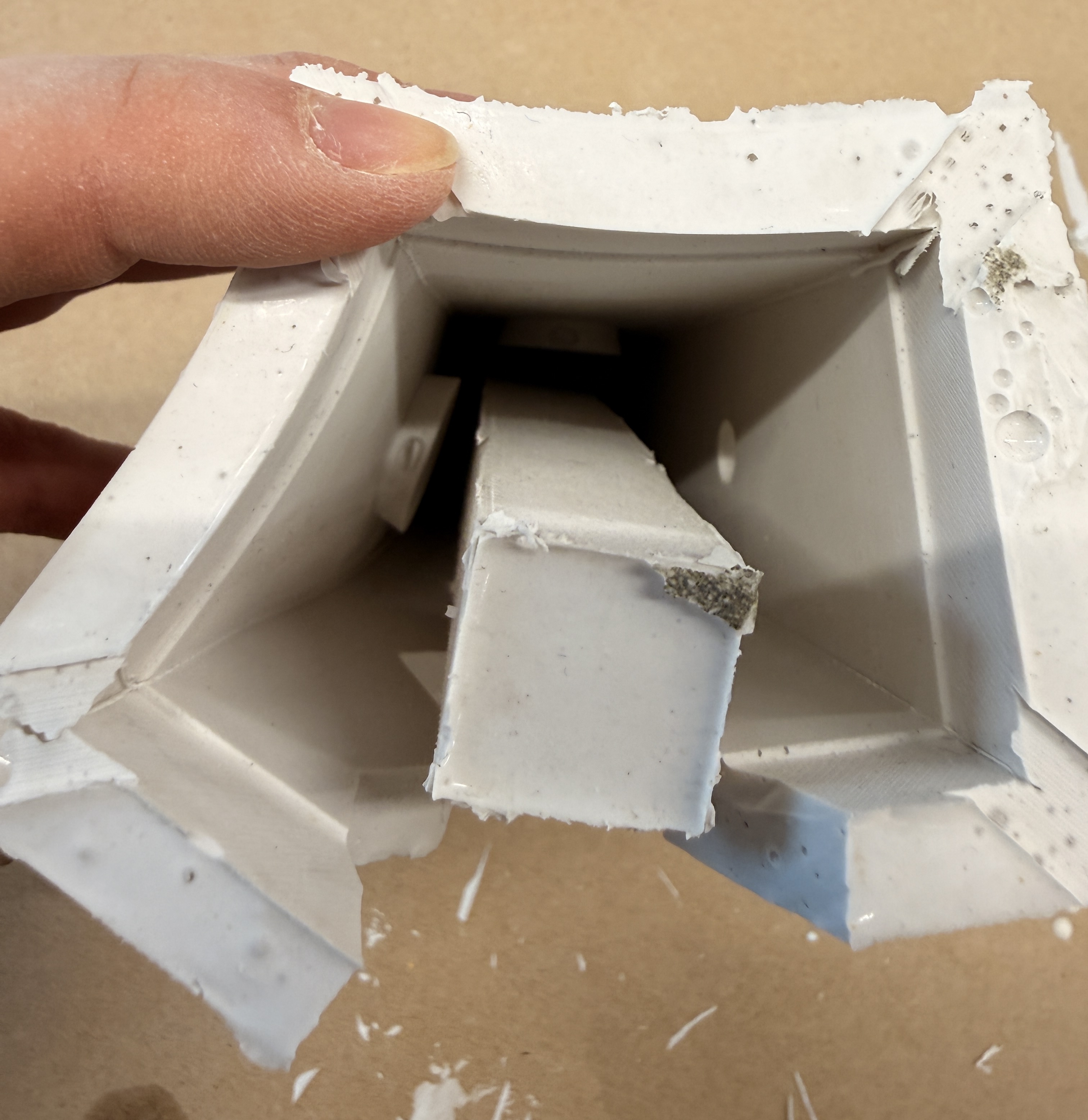

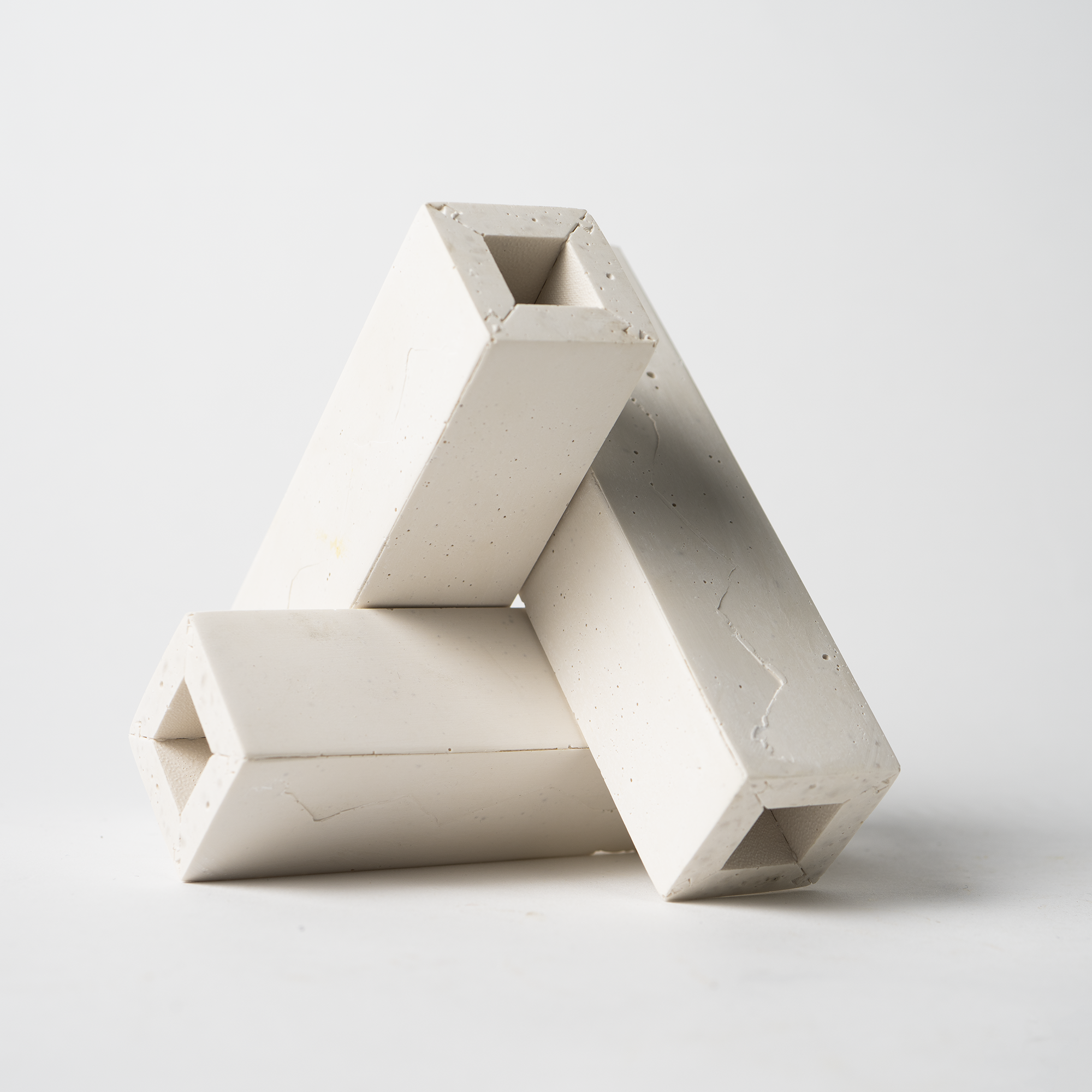

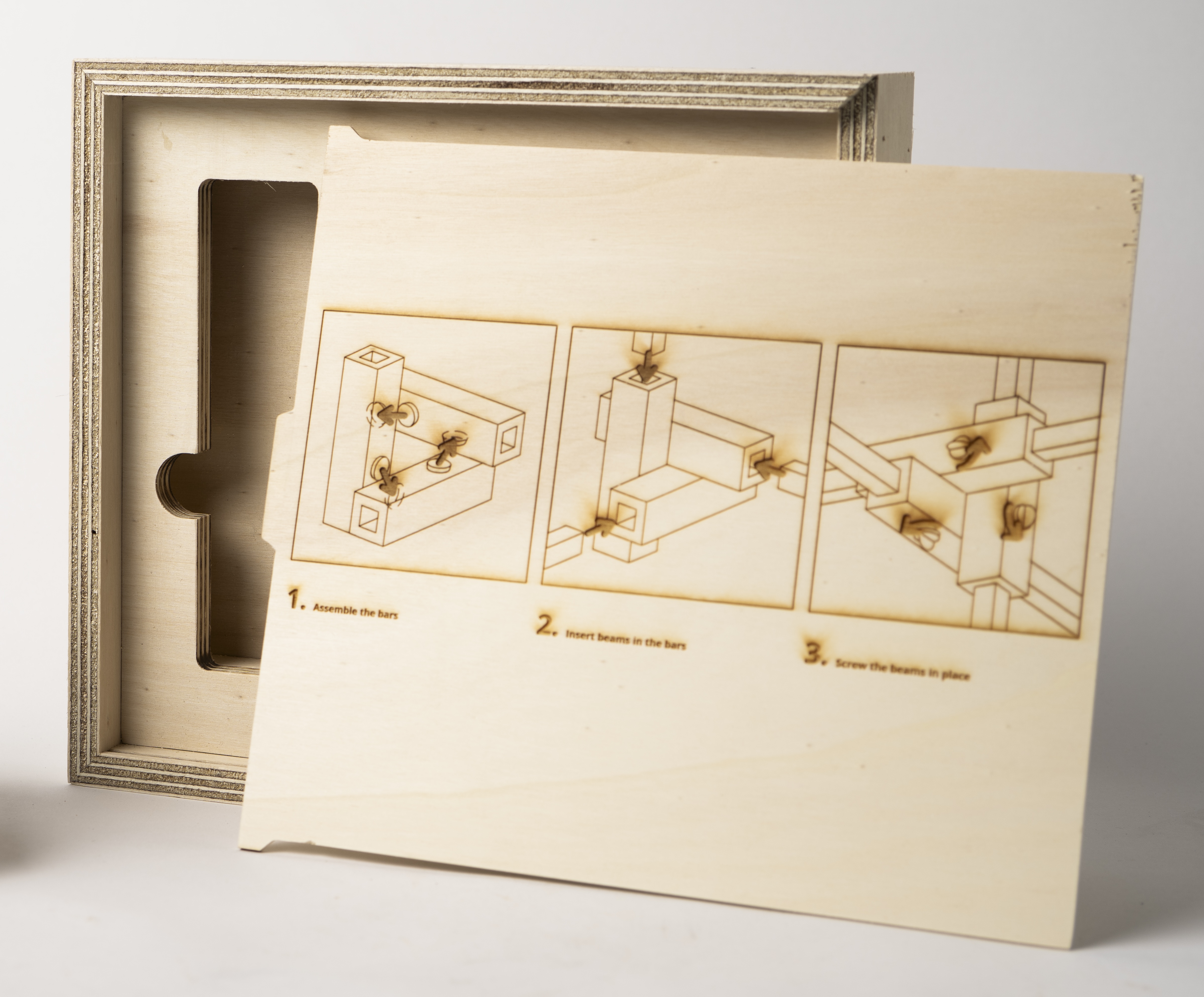

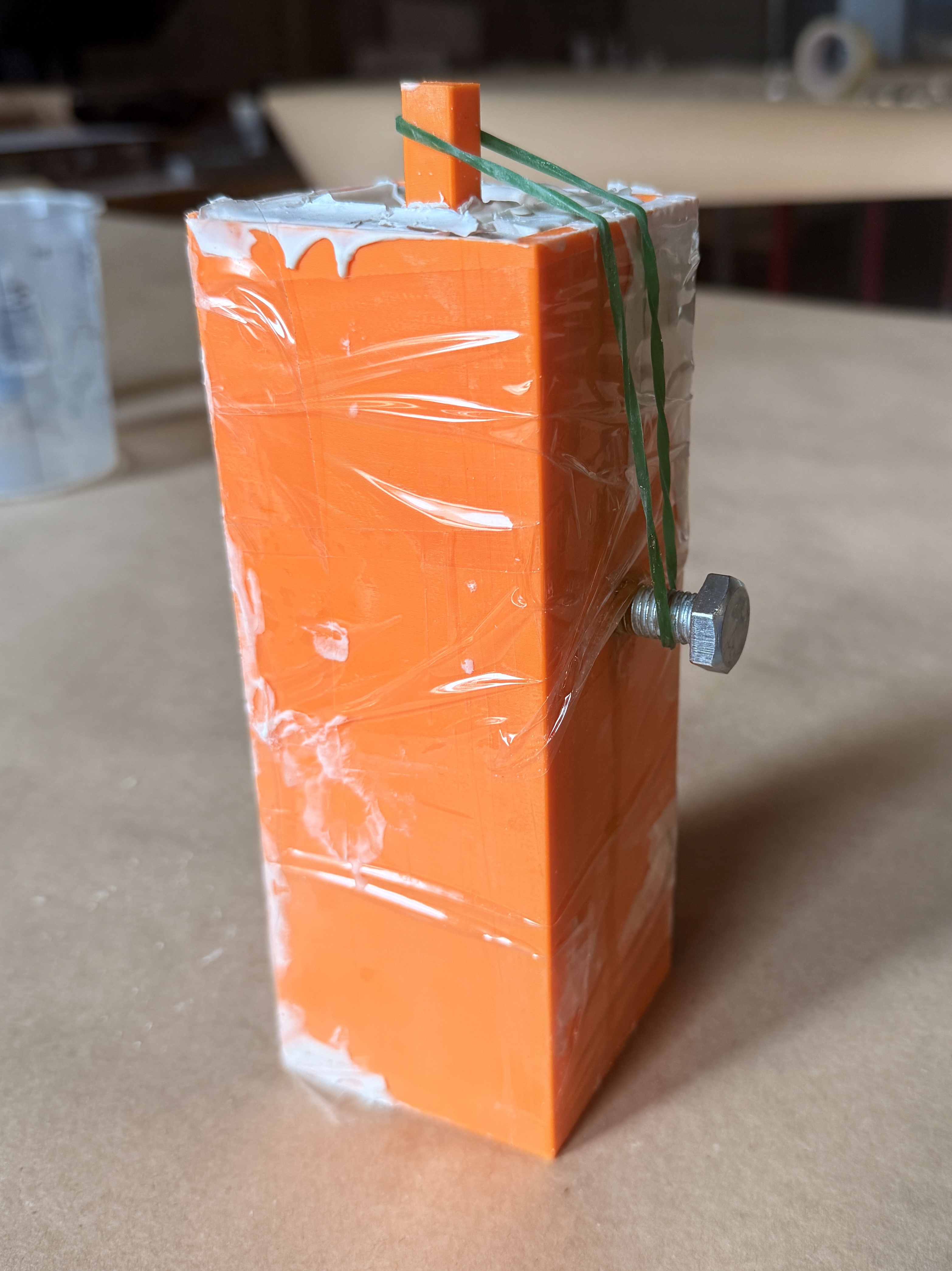

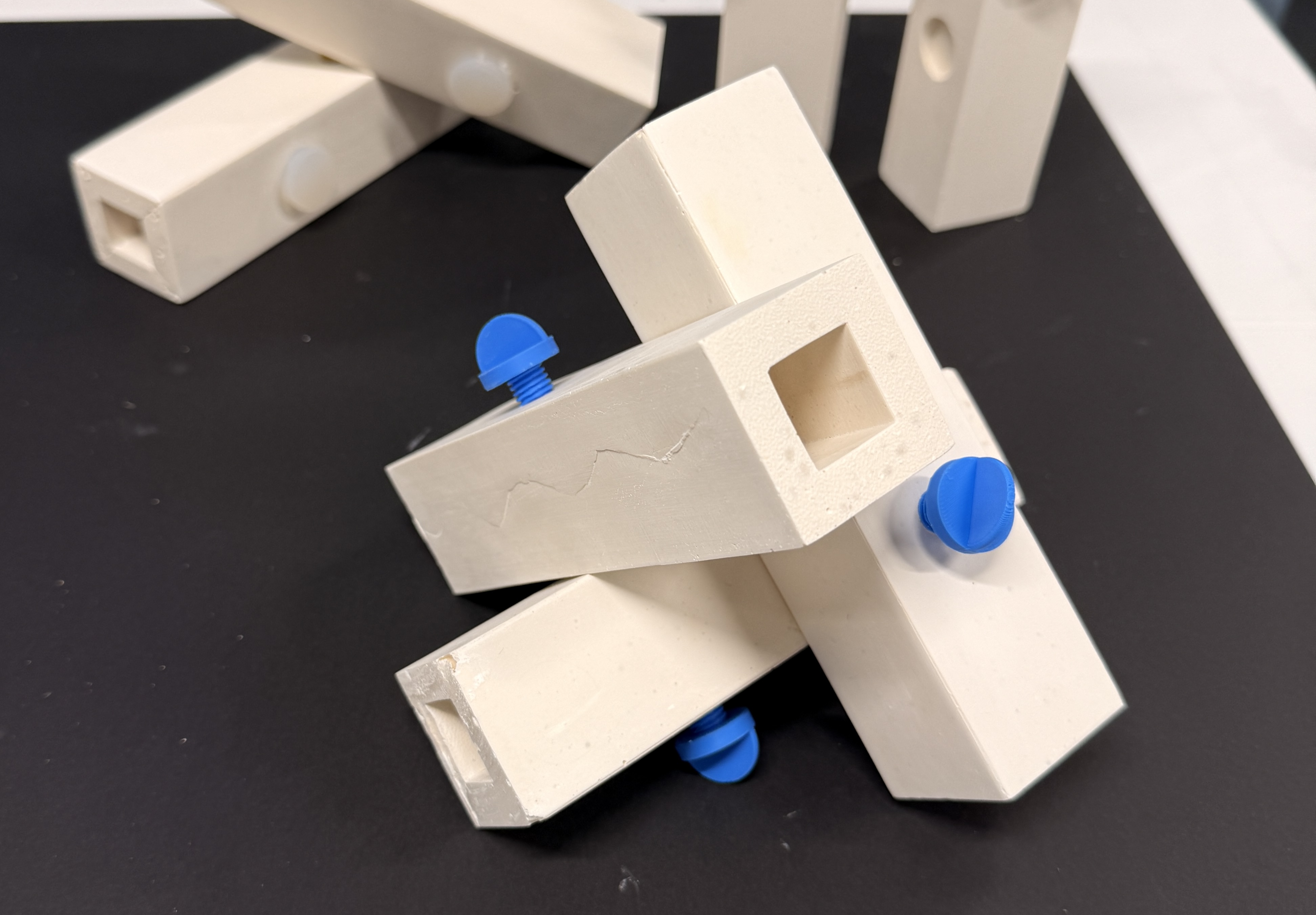

This project started as a school assignment. I was asked to make a mold for creating a series of identical objects, and a packaging for it. I passed the assignment, as I was able to fulfill the assignment, but I am not satisfied with the result yet, so I will continue working on it. 1 I have a fascination for joinery. I love wooden joinery, but I also love coming up with other ways of connecting materials. I came up with this modular 3-way joint system, which will allow the user to create simple 3D structures, by clamping beams of wood (or other material) in the bars. 6 I started by making a 3D printed version of the system. I gave each bar a little cavity and a TPU 3D printed knob, so that each bar could be pushed into another one, connecting 3. I then made a silicon mold of the 3D printed shape, which I could use to cast acrylic bars. 7 9 11 10 I gave each bar also a screw hole, in order to clamp the material inside it. The connecting knobs were cast in silicon. However, the used silicon was too weak to hold the weight of the bars. 2 3 4 Ultimately, I like the concept of this idea, but I don't like the way it currently looks and works. I therefore am working on creating a version that can be slipcasted using a plaster mold and ceramics. 12
