Marijn van Geest

WIP - Porcelain Lamp

Product lamp
Year TBC
Material TBD

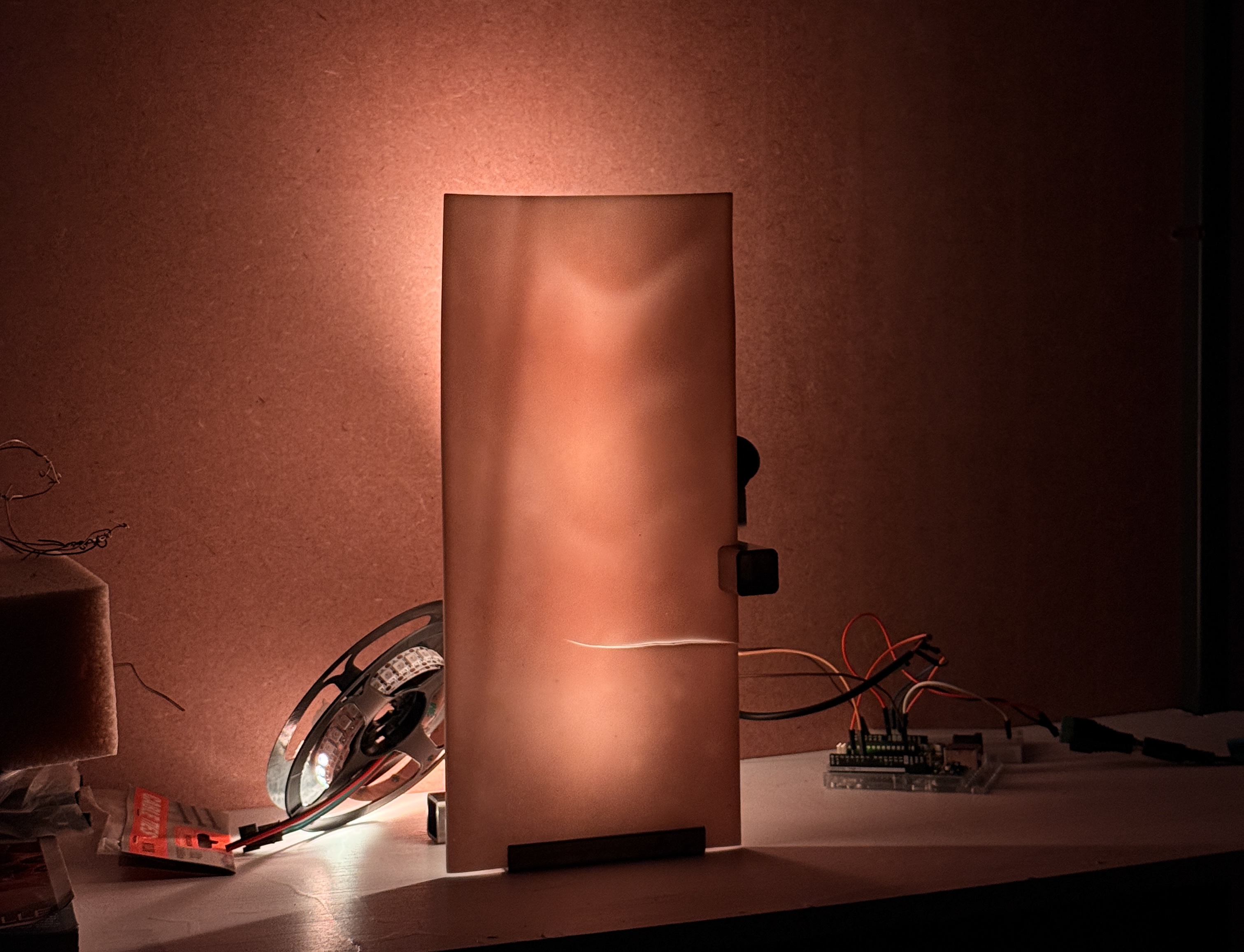

The Porcelain Lamp will have a light source behind the porcelain slab. The porcelain slab lets the light shine through, creating a beautiful effect, but the slab also doubles as the circuit board controlling the lamp. Thus the project shines a light on both the natural material and modern technology.

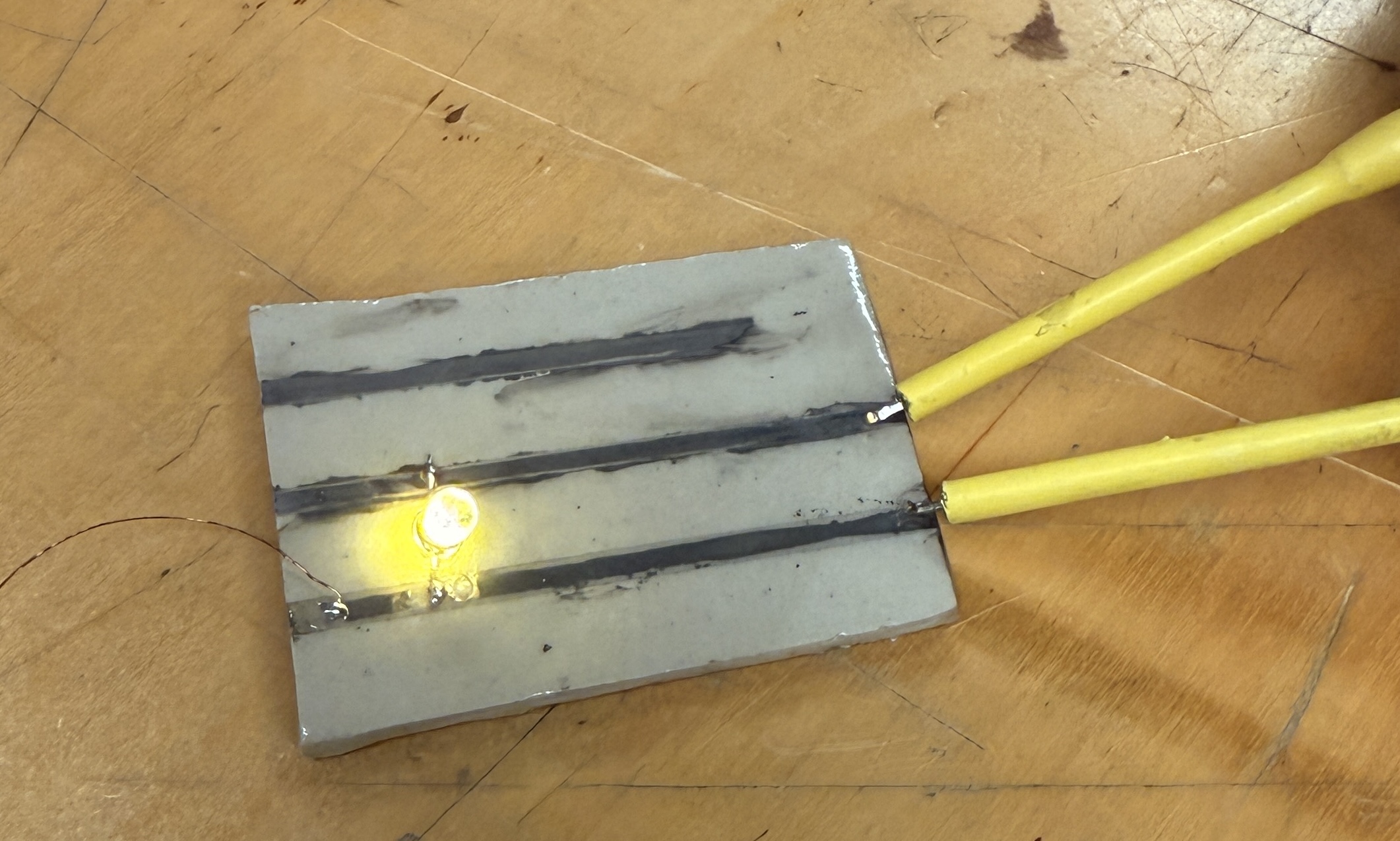

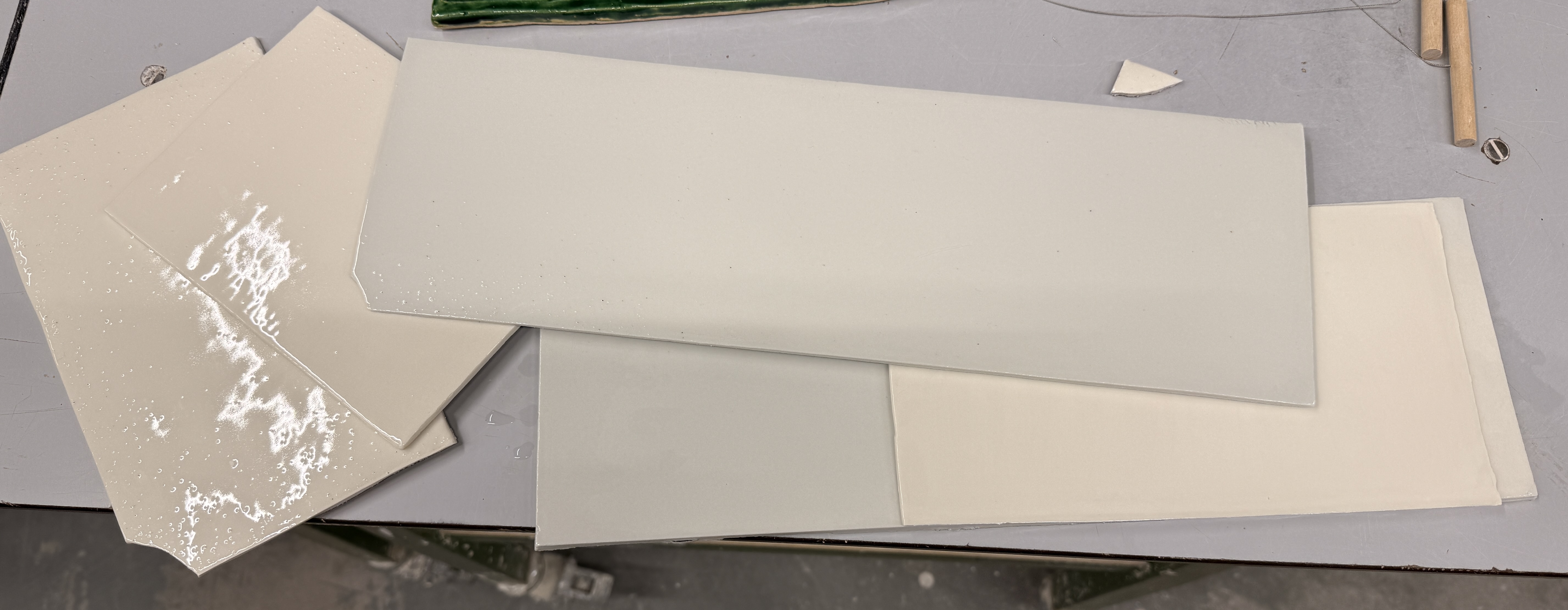

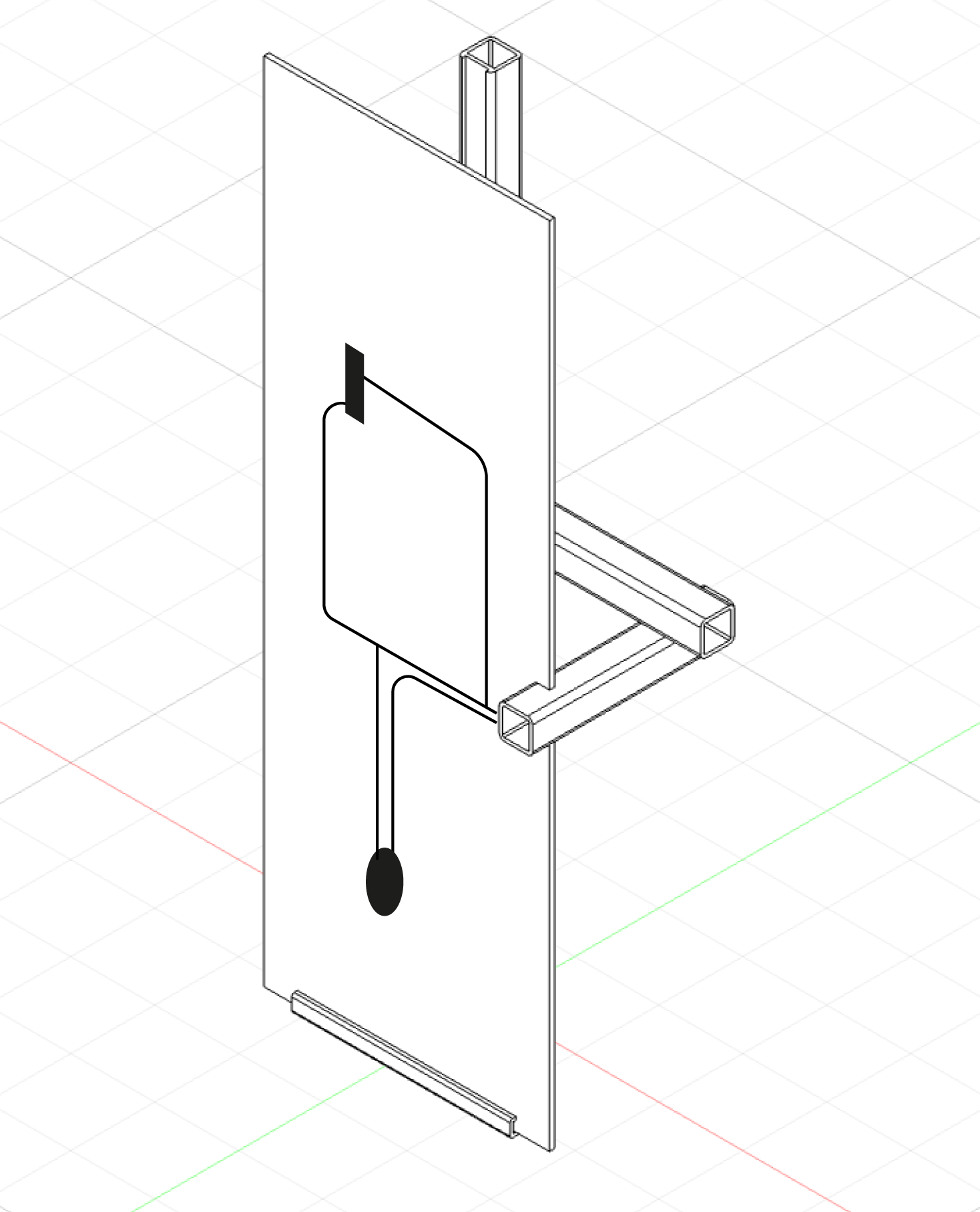

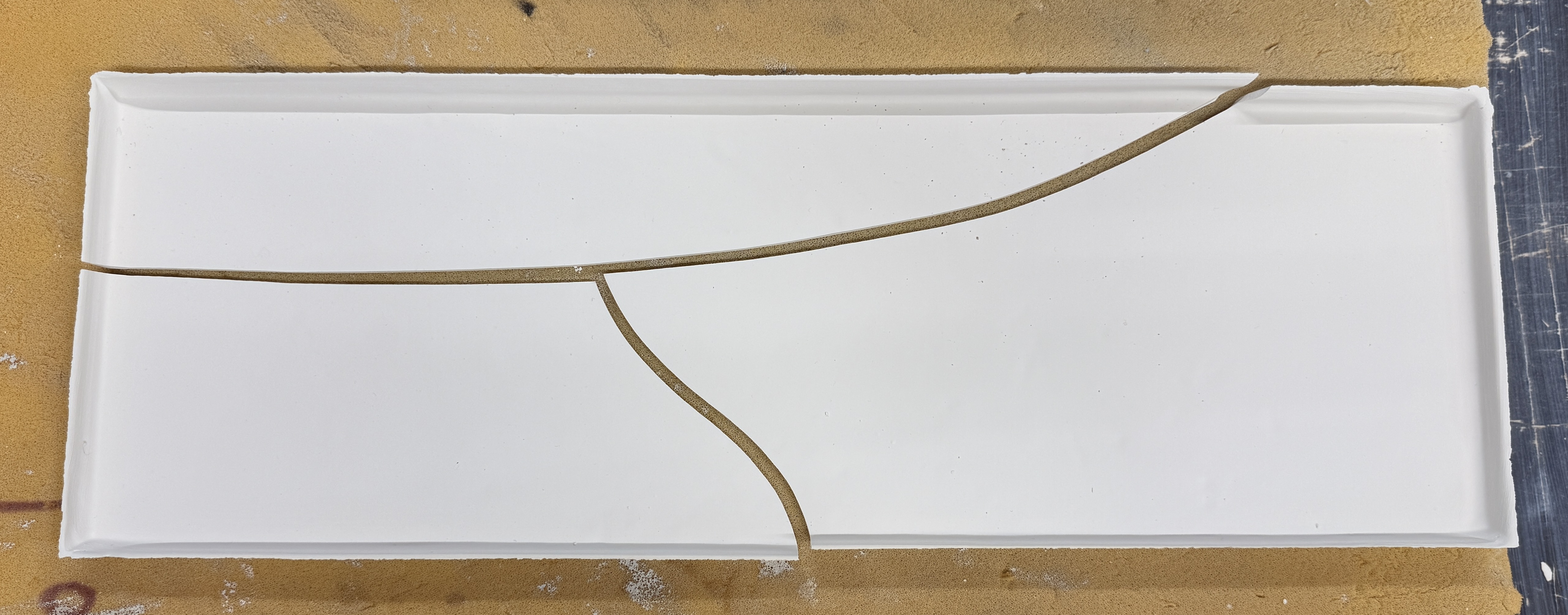

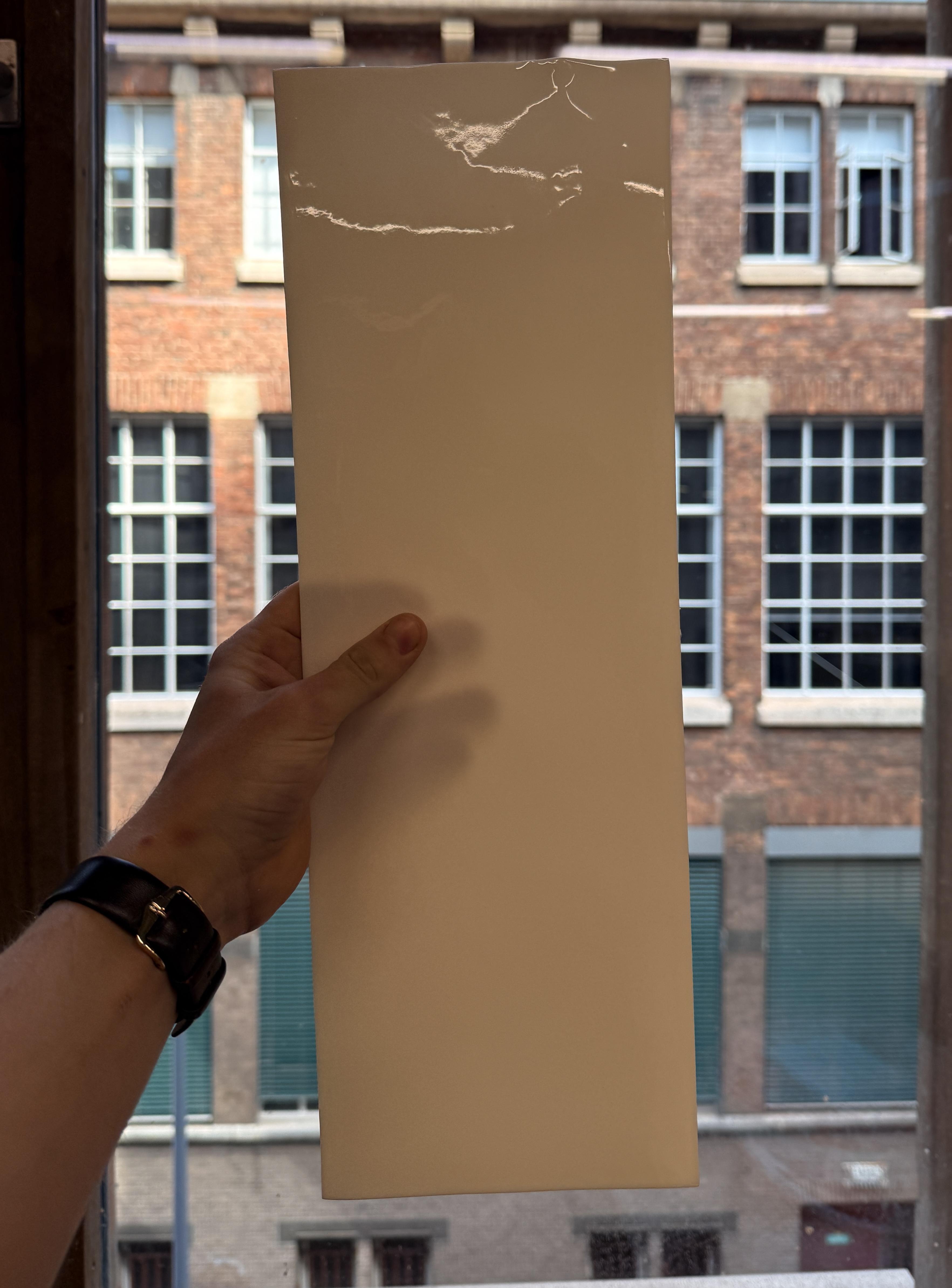

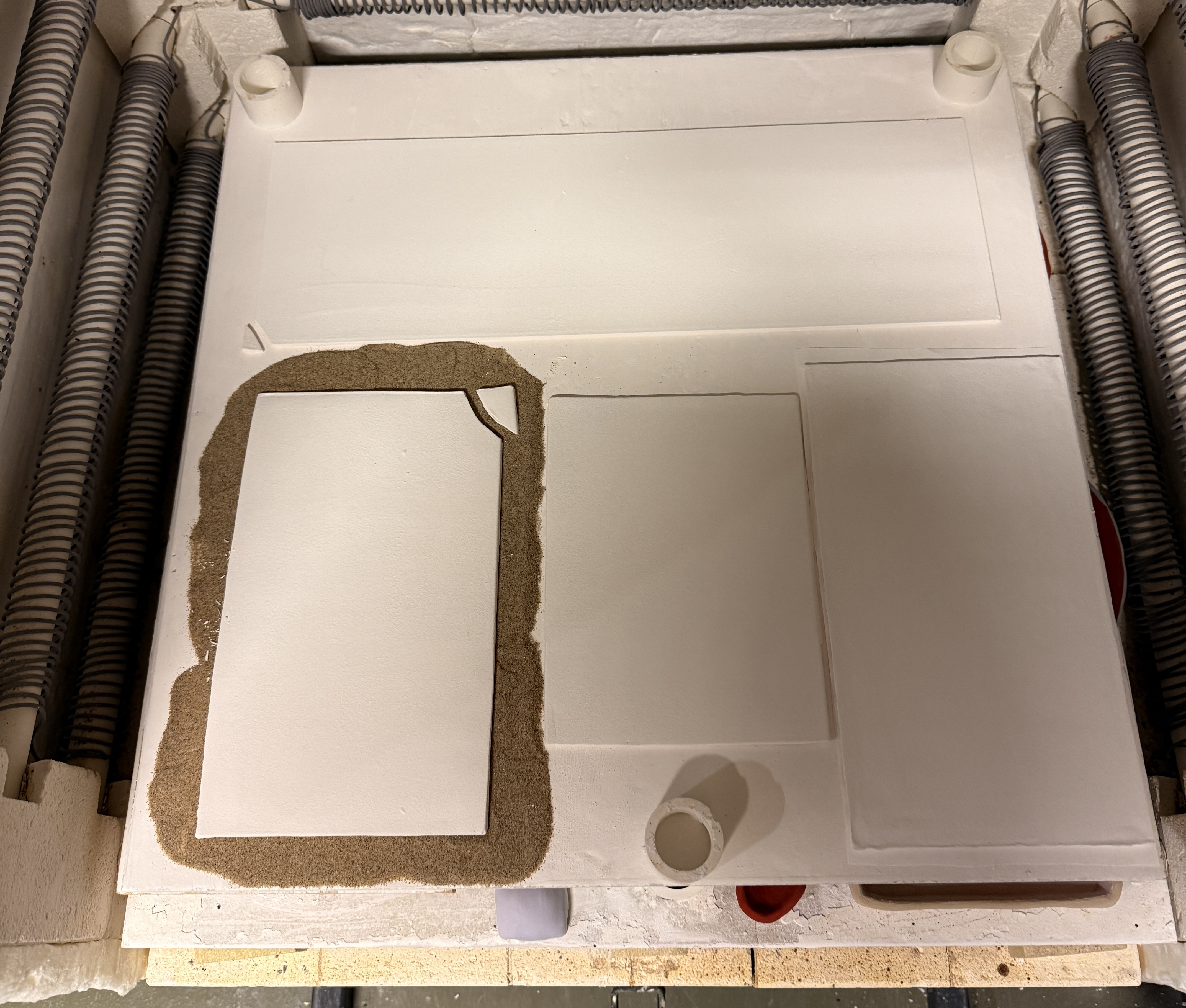

The creation of this lamp started as a school assignment where I needed to take a creative approach to an existing making technique. schets The idea of making this lamp started by a class on circuit boards. I decided to take a creative approach on circuitry and make a ceramic circuit board using luster. However, I felt like I needed a stronger concept for making a ceramic circuit board, rather than just for the sake of it: I wanted to create something where a ceramic cicuit board would make sense. I came up with the idea of using porcelain, as porcelain has a translucent quality, which can make a beautiful lamp. So, I designed a lamp with a porcelain circuit board controlling a light source, shining through the porcelain circuit board. 1 I designed the porcelain to be a thin rectangular slab. I soon came to find out that creating a shape like this in porcelain is not easy, to say the least. Many different methods to cast or shape the porcelain were tried, as well as different ways of firing the porcelain, and different types of porcelain altogether. 2 3 4 After lots of trial and error and sacrificed slabs, I now have found a method which I believe will lead me to have thin, flat porcelain slabs. My latest trial still has a small bump at the top, but I think in the future, this can be eliminated. 7 8 For the ceramics to be conductive, I used luster, a metallic glaze. I opted for platinum luster. I will solder the components on the luster. 5 6 Using Arduino, I coded the behaviour for an LED strip. I also made a steel frame for the porcelain slab. However, for the final version, I will use a tube shaped light bulb, and the luster on the porcelain will function as a capacative touch sensor. I will also redesign the metal frame. 9
